J41B ammonia flanged stop valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
The sealing surface of J41B ammonia flange valve adopts Babbit, tetrafluoroethylene, nylon and so on. Using low temperature resistant high quality carbon steel or stainless steel as the valve body, the service life is long. It is installed in the refrigeration system equipment or pipeline, used to connect and cut off the refrigerant flow channel, in the process of use encounter temperature fluctuations in the environment can naturally achieve chemical treatment performance.
Main uses
Ammonia flange globe valves are suitable for opening and closing of ammonia, ammonia liquid medium pipelines and liquefied gas pipelines at temperatures of - 40 ~ + 120 degrees Celsius. It is mainly suitable for freezing, refrigeration, chemical, petroleum, food, smelting, liquefied petroleum gas and other units.
Scope of use
Range: DN15 ~ DN300
Pressure range: 1.6MPa ~ 4.0MPa
Temperature range: -40 C ~ 120 C
Medium range: propane, alkene, methanol, ethane, gas, liquid ammonia, liquefied natural gas and other cryogenic media.
Material of main parts
零件名稱 | 閥體、閥蓋 | 密封圈 | 填料 | 填料壓蓋 | 閥桿 | 墊片 |
J41B-25C | 鑄鋼 | 巴氏合金 | 聚四氟 乙 烯 | 碳鋼 | 聚四氟 乙 烯 | |
J41B-25Z | 灰鑄鐵 | |||||
J41B-25P | 不銹鋼 | 不銹鋼 | ||||
J41F-25Z | 灰鑄鐵 | 聚四氟乙烯 | 碳鋼 | |||
公稱壓力PN（MPA） | 試驗壓力PS（MPa） | 適用介質 | 適用溫度（℃） | |
2.5 | 3.8 | 氨氣、 氨液等 NH3 | 巴氏合金 -40℃ +150℃ | 四氟 -40℃ +200℃ |
4.0 | 6.4 | |||

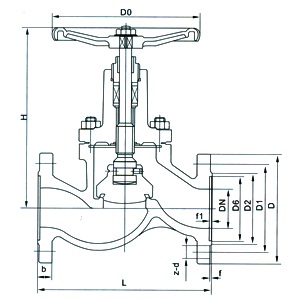

構圖.jpg)
公稱通徑 DN（mm） | 尺 寸 | |||||||||||
L | D | D1 | D2 | D6 | b | f | f1 | Z-φd | 關 | 開 | D0 | |
10 | 130 | 90 | 60 | 40 | 35 | 16 | 2 | 4 | 4-φ14 | 165 | 185 | 110 |
15 | 130 | 95 | 65 | 45 | 40 | 16 | 2 | 4 | 4-φ14 | 165 | 185 | 110 |
20 | 150 | 105 | 75 | 55 | 51 | 18 | 2 | 4 | 4-φ14 | 170 | 200 | 120 |
25 | 160 | 115 | 85 | 65 | 58 | 18 | 2 | 4 | 4-φ14 | 197 | 210 | 120 |
32 | 180 | 135 | 100 | 78 | 66 | 20 | 2 | 4 | 4-φ18 | 199 | 213 | 140 |
40 | 200 | 145 | 110 | 85 | 76 | 20 | 3 | 4 | 4-φ18 | 248 | 264 | 160 |
50 | 230 | 160 | 125 | 100 | 88 | 22 | 3 | 4 | 4-φ18 | 265 | 295 | 180 |
65 | 290 | 180 | 145 | 120 | 110 | 24 | 3 | 4 | 8-φ18 | 310 | 349 | 220 |
80 | 310 | 195 | 160 | 135 | 121 | 26 | 3 | 4 | 8-φ18 | 340 | 357 | 240 |
100 | 350 | 230 | 190 | 160 | 150 | 30 | 3 | 4.5 | 8-φ23 | 380 | 413 | 280 |
125 | 400 | 270 | 220 | 188 | 176 | 32 | 3 | 4.5 | 8-φ25 | 430 | 451 | 320 |
150 | 480 | 300 | 250 | 218 | 204 | 32 | 3 | 4.5 | 8-φ25 | 505 | 492 | 360 |
200 | 600 | 360 | 310 | 278 | 260 | 34 | 3 | 4.5 | 12-φ25 | 550 | 806 | 400 |
250 | 650 | 425 | 370 | 335 | 31 | 36 | 3 | 4.5 | 12-φ30 | 730 | 880 | 450 |
300 | 750 | 485 | 430 | 390 | 364 | 40 | 3 | 4.5 | 16-φ30 | - | 995 | 550 |
