    PZ973H electric pinch knife gate valve

    PZ973H electric pinch knife gate valve
    • sell:021-32051999
    • sell:021-32050777
    • fax:021-66099555

    Details

    • Product Introduction
    • Service Promise
    • Ordering Process

    PZ973H electric clip knife gate valve drive part uses multi-rotating electric device to drive and control the valve opening and closing. Operators can control the valve from a long distance in the control room or operate it manually on the spot. They can also cooperate with the computer to realize automatic control. Widely used in drainage, heating, power plants, chemical, food, paper, pharmaceutical, coal, mining and other projects, to meet the requirements of modern industrial and agricultural automation.


    Electric device parameters


    Power supply: AC380V, 50HZ.


    Standard type: Standard type products with dust-proof, rain-proof shell protection, protection grade IP65, can be directly used in the outdoor.


    Waterproof: the product has a protective level of dust and water immersion (IP67).


    Explosion proof type (EX): explosion-proof and so on are D II BT4/D II CT4 (without acetylene).


    Ambient temperature: -20 C ~40 C


    Optional: equipped with electrical controller.


    Characteristic


    1. Quick opening and closing, reliable balance and high automation.


    2. Installation height and position are not limited.


    3, the use of explosion-proof electric devices, in flammable, explosive, and even toxic gas environment can work normally.


    4. Equipped with manual, in case the power supply is interrupted, the valve can be opened or closed manually to effectively control the medium and prevent accidents.

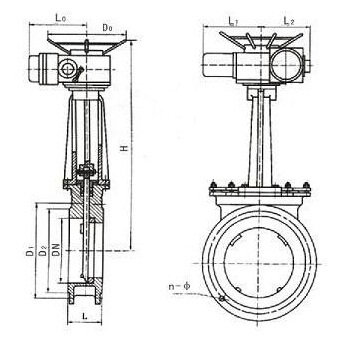

    Main dimensions


    公稱壓力
    DN
    L
    D1
    D2
    H
    D0
    L0
    L1
    L2
    N-Φ
    電裝型號
    0.6MPa
    50
    43
    90
    110
    600
    125
    215
    318
    197
    4-M12
    DZ10
    65
    46
    110
    130
    670
    125
    215
    318
    197
    4-M12
    DZ10
    80
    46
    125
    150
    680
    125
    215
    318
    197
    4-M16
    DZ10
    100
    52
    145
    170
    700
    125
    215
    318
    197
    4-M16
    DZ10
    125
    56
    175
    200
    720
    125
    215
    318
    197
    8-M16
    DZ10
    150
    56
    200
    225
    790
    125
    215
    318
    197
    8-M16
    DZ10
    200
    60
    255
    280
    850
    125
    215
    363
    197
    8-M16
    DZ15
    250
    68
    310
    335
    1100
    125
    215
    363
    197
    12-M16
    DZ20
    300
    78
    362
    395
    1180
    125
    215
    363
    197
    12-M20
    DZ20
    350
    78
    412
    445
    1280
    125
    215
    363
    197
    12-M20
    DZ30
    400
    102
    462
    495
    1460
    125
    215
    363
    197
    16-M20
    DZ45
    450
    114
    518
    550
    1600
    235
    240
    437
    277
    16-M20
    DZ45
    500
    127
    568
    600
    1800
    235
    240
    437
    277
    16-M20
    DZ45
    600
    154
    670
    705
    2100
    235
    240
    437
    277
    20-M22
    DZ60
    700
    165
    775
    810
    2300
    260
    274
    526
    283
    24-M22
    DZ90
    800
    190
    880
    920
    2500
    260
    274
    526
    283
    24-M27
    DZ120
    900
    203
    980
    1020
    2700
    295
    319
    554
    309
    24-M27
    DZ180
    1000
    216
    1080
    1120
    2900
    295
    319
    554
    309
    28-M27
    DZ250
    1200
    254
    1295
    1340
    3400
    295
    319
    554
    309
    32-M30
    DZ250
    1.0MPa
    50
    43
    160
    125
    600
    125
    215
    318
    197
    4-M16
    DZ10
    65
    46
    120
    145
    670
    125
    215
    318
    197
    4-M16
    DZ10
    80
    46
    135
    160
    680
    125
    215
    318
    197
    4-M16
    DZ10
    100
    52
    155
    180
    700
    125
    215
    318
    197
    8-M16
    DZ10
    125
    56
    185
    210
    720
    125
    215
    318
    197
    8-M16
    DZ10
    150
    56
    210
    240
    790
    125
    215
    318
    197
    8-M20
    DZ10
    200
    60
    265
    295
    850
    125
    215
    363
    197
    8-M20
    DZ15
    250
    68
    320
    350
    1100
    125
    215
    363
    197
    12-M20
    DZ20
    300
    78
    368
    400
    1180
    125
    215
    363
    197
    12-M20
    DZ20
    350
    78
    428
    460
    1280
    125
    215
    363
    197
    16-M20
    DZ30
    400
    102
    482
    515
    1460
    235
    240
    437
    277
    16-M22
    DZ45
    450
    114
    532
    565
    1600
    235
    240
    437
    277
    20-M22
    DZ45
    500
    127
    585
    620
    1800
    235
    240
    437
    277
    20-M22
    DZ60
    600
    154
    685
    725
    2100
    260
    274
    526
    283
    20-M27
    DZ90
    700
    165
    800
    840
    2300
    260
    274
    526
    283
    24-M27
    DZ120
    800
    190
    898
    950
    2500
    295
    319
    554
    309
    24-M30
    DZ180
    900
    203
    1005
    1050
    2700
    295
    319
    554
    309
    28-M30
    DZ180
    1000
    216
    1115
    1160
    2900
    295
    319
    554
    309
    28-M30
    DZ250
    1200
    254
    1325
    1380
    3400
    295
    319
    554
    309
    32-M36
    DZ250


    The best quality, first-class service Qigao creates more value for you!

    "Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

    Product Standards:

    Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

    pre-sale service:

    Product introduction, technical exchange, non-standard product design, troubleshooting。

    Sale service:

    A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

    After sales service:

    1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

    2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

    3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

    4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

    1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

    a、Structure length;

    b、Connection Type;

    c、Nominal diameter, full diameter, reduced diameter, pipe size;

    d、Operating medium and temperature, pressure range;

    e、Tests, inspection standards and other requirements

    2、The factory can configure various types of driving devices according to customer's specific requirements.。

    3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

    4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



    Order Process:

    1、Customer purchase list fax to021-33872143,Or call us 021-33872141

    2、Receive customer purchase list, provide valve model selection and quotation (price list)。

    3、Specific agreement: delivery date, special requirements, etc.。

    download Google:

    1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

    a、Structure length;

    b、Connection Type;

    c、Nominal diameter, full diameter, reduced diameter, pipe size;

    d、Operating medium and temperature, pressure range;

    e、Tests, inspection standards and other requirements

    2、The factory can configure various types of driving devices according to customer's specific requirements.。

    3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

    4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

    Sale service:

    Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

    For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

    After sales service:

    1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

    2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
    In order to further improve product quality。

    3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

    4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

    statement

    1. All text, data and pictures in this article are for reference only.PZ973H electric pinch knife gate valvePlease contact us at 4000-700-665 for details of performance, size and price.
