    ZDLS electronic high-pressure electric angle regulator consists of PS series and 3610 series straight-stroke electric actuator and low flow resistance through single-seat valve. The electric actuator is an electronic integrated structure with servo amplifier, input control signal (4-20mADC or 1-5VDC) and power supply can control the valve opening to adjust the pressure, flow, liquid level, temperature and other parameters. It has the characteristics of sensitive action, simple connection, large volume, small volume and high adjustment precision. Angular high pressure regulating valve is a product developed to solve the problems of short service life, easy fracture of valve stem and easy shedding of bushing under the condition of high pressure or high pressure difference, serious cavitation and erosion. It uses multi-stage throttling to distribute the pressure difference, reduces cavitation, erosion, deflection damage, greatly improves the service life of the control valve, especially in the urea system than ordinary high-pressure valve life increased by 2-3 times. The valve body is rectangular, the valve core is single-directional structure, the valve body flow path is simple, the resistance is small, especially suitable for high viscosity, containing suspended solids and granular medium fluid regulation, can avoid coking, adhesion, plugging.


    Main technical parameters of electronic electric high pressure angle regulating valve


    Nominal path(mm)
    6
    10
    15
    25
    Valve seat diameter(mm)
    3
    4
    6
    4
    5
    7
    8
    10
    6
    7
    8
    10
    12
    7
    8
    10
    12
    16
    20
    discharge coefficientKv
    0.04
    0.1
    0.1
    0.4
    0.4
    1
    1.6
    2.5
    4
    6.3
    8
    0.16
    0.4
    0.16
    1
    1.6
    2.5
    0.63
    1
    1.6
    2.5
    4
    0.063
    0.25
    0.25
    0.63
    Nominal path(mm)
    32
    40
    50
    65
    80
    100
    125
    150
    200
    Valve seat diameter(mm)
    16
    20
    30
    20
    38
    30
    50
    38
    65
    50
    80
    65
    100
    65
    125
    100
    150
    125
    200
    discharge coefficient
    6.3
    8
    16
    8
    25
    16
    40
    25
    63
    40
    100
    63
    160
    100
    250
    160
    400
    250
    600
    Adjustable range
    Kv value <18 when r= "20:1; Kv value" >18 R=30:1
    Nominal pressure
    1.6、4.0、6.4、10、16、22、32MPa
    Spool form
    Sleeve guide single seat plunger spool
    Flow characteristics
    straight line
    Form of action
    Electric and electric
    working temperature
    Common type-40 ~ 230 C; Heat sink type230 ~ 450 C, special order 450~600 C
    Flanges standard
    Comply with JB/T2769-92 standard, and can be ordered according to ANSI, JIS and DIN.
    control signal
    4 ~ 20mA.DC; 1 ~ 5V.DC; 0 ~ 10V.DC (related to Executive Agency).
    Power Supply
    S220V.AC, 50HZ; 380V.AC, 50HZ (related to Executive Agency)


    Nominal path(mm)
    20
    25
    40
    50
    65
    80
    100
    150
    200
    250
    300
    Valve seat diameter(mm)
    10
    12
    15
    20
    25
    32
    40
    50
    65
    80
    100
    125
    150
    200
    250
    300
    discharge coefficientKv
    1.6
    2.5
    4
    6.3
    10
    16
    25
    40
    63
    100
    160
    250
    400
    630
    1000
    1600
    Adjustable range
    30:1
    Nominal pressure
    Standard products 1.6, 4, 6.4MPa;
    Spool form
    Single seat plunger spool
    Flow characteristics
    Linear and equal percentage
    working temperature
    Common type-40 ~ 230 C; Heat sink type230 ~ 450 C, special order 450~600 C
    Flanges standard
    According to JB78-59 and JB79-59 standards, it can be ordered according to JB/79.1-94, JB/79.2-94, ANSI, JIS, DIN and so on.

    Note: Products whose working temperature, nominal pressure and nominal diameter exceed the scope of the list can be settled through consultation with this company.


    Performance index of electronic electric high pressure angle regulating valve


    Leakage rate: IV, less than 10-4 of rated flow.


    Backlash: 2% with 3610L.


    There are 1% basic errors in matching PSL executing agencies:


    The executing agency with 3610L is + 2.5%.


    Matching PSL executive body is + 1%.


    Note: the filler used in the test is standard PTFE packing.


    Electronic electric high pressure angle control valve main parts material


    Valve body material: ZG230-450, ZG1Cr18Ni9Ti, 316, 316L, wear resistant alloy, etc.


    Core material: 1Cr18Ni9Ti, 316, 316L, wear resistant alloy, F4, etc.


    Filler material: PTFE and flexible graphite.


    Allowable differential pressure of electronic electric high pressure angle control valve


    Nominal path(mm)
    20
    25
    40
    50
    65
    80
    100
    150
    200
    250
    300
    Valve seat diameter(mm)
    10
    12
    15
    20
    25
    32
    40
    50
    65
    80
    100
    125
    150
    200
    250
    300
    Executive Agency
    Allowable pressure difference△P(MPa)
    PSL
    PSL202
    6.4
    6.4
    6.4
    4.90
    3.14
    1.92
    1.23
    0.78
    PSL204
    4.31
    2.76
    1.76
    1.04
    0.69
    0.44
    PSL208
    1.86
    1.23
    0.78
    0.50
    0.35
    0.20
    PSL320
    1.26
    0.87
    0.49
    0.32
    0.22
    PSL
    361LSA-20
    6.4
    6.4
    6.4
    4.90
    3.14
    1.92
    1.23
    0.78
    361LSB-50
    4.79
    3.06
    1.96
    1.16
    0.76
    0.49
    361LSC-65
    1.51
    0.99
    0.64
    0.41
    0.28
    361LSC-99
    0.63
    0.44
    0.25
    0.16
    0.11


    Note: (1) the actual configuration needs to be determined according to the specific process parameters.


    (2) If the allowable pressure difference is not clear or the maximum working pressure difference is beyond the scope of the list, please contact us and take appropriate measures to solve it.

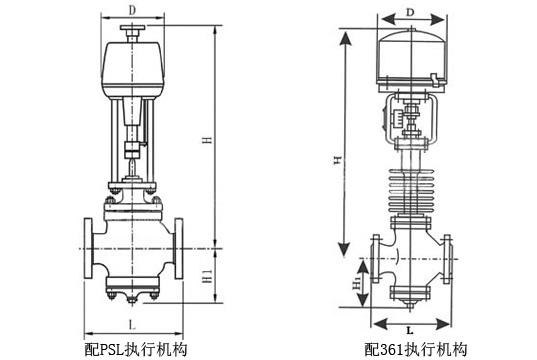

    Main dimensions of electronic electric high pressure angle control valves
    Nominal path(mm)
    20
    25
    32
    40
    50
    65
    80
    100
    125
    150
    200
    L1(mm)
    98
    105
    105
    120
    135
    190
    225
    270
    315
    367
    L2(mm)
    PN1.6MPa
    85
    95
    115
    115
    130
    145
    155
    175
    200
    240
    300
    PN4.0MPa
    85
    95
    115
    115
    130
    145
    155
    175
    200
    240
    300
    PN6.4MPa
    100
    115
    130
    130
    150
    170
    190
    215
    250
    275
    325
    PSL
    H(mm)
    Common type
    753
    761
    789
    778
    793
    819
    858
    893
    921
    951
    956
    Heat sink type
    883
    891
    919
    908
    923
    892
    1021
    1056
    1120
    1150
    1156
    D(mm)
    176
    weight(KG)
    13.5
    22.5
    25.5
    29.5
    50
    60
    78
    119
    157
    255
    361L
    H(mm)
    Common type
    516
    542
    552
    688
    744
    783
    818
    976
    1006
    1036
    Heat sink type
    646
    654
    682
    818
    907
    946
    981
    1175
    1205
    1235
    D(mm)
    225
    310
    weight(KG)
    21
    30
    33
    41
    45
    65
    75
    93
    172
    210
    308
    Note: the data in this table is standard configuration data, and will vary with the different configuration of the executing agency.
