H74H/X wafer clip check valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
H74H and H74X double-clip disc check valve is a kind of ultra-thin check valve. It has the advantages of simple structure, beautiful appearance, light weight and easy installation. Mainly suitable for water supply systems, petroleum, chemical, metallurgical and other industrial departments to install space constraints on the most suitable places.
Main technical parameters
型號 | 公稱通徑 | 試驗壓力 | 適用溫度 | 適用介質 | ||
殼體 | 密封 | 硬密封 | 軟密封 | |||
H74H（X）-10 | 1.0 | 1.5 | 1.1 | ≤400℃ | ≤120℃MAX ≤250℃ | 油、水、酸碘等液體 |
H74H（X）-16 | 1.6 | 2.4 | 1.76 | |||
H74H（X）-25 | 2.5 | 3.75 | 2.75 | |||
H74H（X）-40 | 4.0 | 6.0 | 4.4 | |||
零件名稱 | 閥體、閥瓣 | 密封圈 |
材料 | 碳鋼、不銹鋼、銅 | 丁腈橡膠、三元丙橡膠、聚四氟乙烯、不銹鋼 |

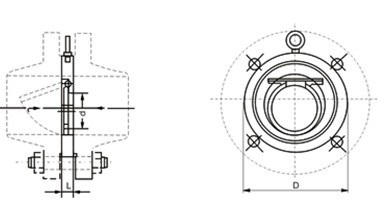

夾圓片式止回閥結構圖.jpg)
公稱通徑 | D | L | D | ||||
I型 | II型 | PN1.0 | PN1.6 | PN2.5 | PN4.0 | ||
50 | 25 | 15 | 22 | 109 | 109 | 109 | 109 |
65 | 38 | 15 | 22 | 129 | 129 | 129 | 129 |
80 | 46 | 15 | 22 | 144 | 144 | 144 | 144 |
100 | 72 | 15 | 24 | 164 | 164 | 170 | 170 |
125 | 95 | 16 | 26 | 194 | 194 | 186 | 186 |
150 | 114 | 19 | 29 | 221 | 221 | 226 | 226 |
200 | 140 | 29 | 43 | 275 | 275 | 283 | 293 |
250 | 188 | 29 | 43 | 330 | 331 | 343 | 355 |
300 | 216 | 38 | 50 | 380 | 386 | 403 | 420 |
350 | 263 | 41 | 52 | 440 | 446 | 460 | 477 |
400 | 305 | 51 | 62 | 491 | 498 | 517 | 549 |
450 | 356 | 51 | 62 | 541 | 558 | 567 | 574 |
500 | 406 | 65 | 80 | 596 | 620 | 627 | 613 |
600 | 482 | 70 | 90 | 698 | 737 | 734 | 750 |
Note: (1) flange joint size: according to GB/T9113.1-2000 standard.
(2) I is used for the steady flow condition; type II is equipped with spring device on the basis of I type.
