H76H pair of butterfly check valves
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
H76H butterfly check valve is used for purified pipelines and industrial, environmental protection, water treatment, water supply and drainage pipelines in high-rise buildings to prevent reverse flow of media. The check valve adopts clamping type, butterfly plate is two semicircles, and adopts spring force reset. The sealing surface can be surfacing and welding wear-resisting material or rubber lining for the body. It has a wide range of use and reliable sealing.
Main technical parameters
公稱通徑 | DN(mm) | 50~1200 | |||
公稱壓力 | PN(MPa) | 1.0 | 1.6 | 2.5 | 4.0 |
試驗壓力Ps(MPa) | 強度試驗 | 1.5 | 2.4 | 3.75 | 6.0 |
密封試驗 | 1.1 | 1.76 | 2.75 | 4.4 | |
適用介質 | 水、蒸汽、油品、污水、酸堿類 | ||||
適用溫度 | 橡膠密封面（X）-20℃~120℃ 合金鋼密封面（H）主體碳鋼-29℃~425℃ 不銹鋼主體用于酸類介質-29℃~200℃ | ||||
名稱 | 材料 |
閥體 | 鑄鐵、鑄鋼、不銹鋼、鉻鎳鉬鈦鋼 |
閥板 | 鑄鐵、鑄鋼、不銹鋼、鉻鎳鉬鈦鋼 |
閥桿 | 碳鋼、2Cr13、不銹鋼、鉻鎳鉬鈦鋼 |
密封圈 | 橡膠、不銹鋼、合金鋼 |
彈簧 | 60Si2Mn、3Cr13、17-7PH、INCONEL |

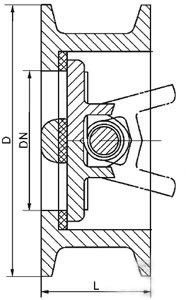

夾蝶式止回閥結構圖.jpg)
通徑DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 |
L | 43 | 46 | 64 | 64 | 70 | 76 | 89 | 114 | 114 | 127 | 140 | 152 | 152 | 178 | 229 | 241 | 241 | 300 | 360 |
D | 100 | 120 | 135 | 155 | 185 | 185 | 265 | 320 | 368 | 428 | 482 | 532 | 585 | 685 | 800 | 905 | 1005 | 1115 | 1325 |
通徑DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
L | PN1.0/1.6/2.5 | 60 | 67 | 73 | 73 | 83 | 98 | 127 | 146 | 181 | 184 | 198 | 203 | 219 | 222 |
PN4.0 | 60 | 67 | 73 | 73 | 83 | 98 | 127 | 146 | 181 | 222 | 231 | / | / | / | |
D | PN1.0 | 107 | 127 | 142 | 162 | 192 | 218 | 273 | 328 | 378 | 438 | 489 | 539 | 594 | 695 |
PN1.6 | 107 | 127 | 142 | 162 | 192 | 218 | 273 | 328 | 378 | 444 | 495 | 555 | 617 | 734 | |
PN2.5 | 107 | 127 | 142 | 168 | 194 | 224 | 284 | 340 | 400 | 458 | 514 | / | / | / | |
PN4.0 | 107 | 127 | 142 | 168 | 194 | 224 | 290 | 352 | 417 | 474 | 546 | / | / | / | |
