HH47X butterfly buffer check valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
H47X, H47H, HH47X, HH47H, H47X, HDH47X butterfly buffer check valves are mainly used in industrial water supply, sewage treatment plant pump outlet to prevent medium backflow in pipe network. Automatically eliminate destructive water hammer to ensure that pumps and pipelines are not damaged. The valve is mainly composed of valve body, disc, buffer device and micro regulating valve. The product is characterized by novel structure, small volume, small fluid resistance, smooth operation, reliable tightness, wear resistance, good cushioning performance and so on. It is the best product for industrial water and urban sewage discharge.
Material of main parts
零件名稱 | 閥體 | 蝶 板 | 密封圈 | 閥桿 | 填料 |
材料 | 灰鑄鐵 碳鋼 | 灰鑄鐵、鑄鋼、球墨鑄鐵 | 丁腈耐油橡膠、 氯丁橡膠 | 不銹鋼 | 聚四氟乙烯 |
型號 | 公稱壓力 PN(MPa) | 試驗壓力Ps(MPa) | 工作壓力 P(MPa) | 介質溫度 (℃) | 適用介質 | |
殼體 | 密封 | |||||
H47X、H47H、H47X、 H47H、H47X、HD47X | 1.0 | 1.5 | 1.1 | 1.0 | 0-80℃ | 水、油品 海水、污水 |
1.6 | 2.4 | 1.75 | 1.6 | |||
2.5 | 3.75 | 2.75 | 2.5 | |||

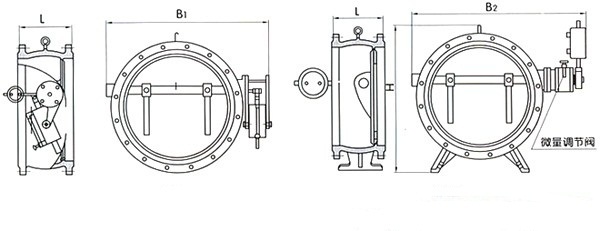

構圖.jpg)
公稱通徑 DN(mm) | 尺 寸 | |||
L | H | B1 | B2 | |
200 | 230 | 550 | 540 | 600 |
250 | 250 | 630 | 600 | 700 |
300 | 270 | 690 | 650 | 740 |
350 | 290 | 780 | 710 | 800 |
400 | 310 | 860 | 770 | 870 |
450 | 330 | 910 | 830 | 920 |
500 | 350 | 980 | 900 | 1000 |
600 | 390 | 1070 | 1090 | 1250 |
700 | 430 | 1220 | 1200 | 1360 |
800 | 470 | 1320 | 1320 | 1480 |
900 | 510 | 1430 | 1420 | 1580 |
1000 | 550 | 1550 | 1550 | 1700 |
1200 | 630 | 1800 | 1780 | 1950 |
1400 | 710 | 1980 | 2000 | 2175 |
