    J941H electric flange stop valve

    J941H electric flange stop valve
    • sell:021-32051999
    • sell:021-32050777
    • fax:021-66099555

    Details

    • Product Introduction
    • Service Promise
    • Ordering Process

    J941H electric flange globe valve is suitable for cutting off or connecting pipeline medium in petroleum, chemical, pharmaceutical, fertilizer and electric power industry with nominal pressure PN1.6-16MPa and working temperature-29-550 C. The driving mode is manual, gear drive, electric, pneumatic and so on.


    Application standards of electric flange shut-off valves


    設計與制造
    GB/T12235
    連接端尺寸
    結構長度
    GB/T12221
    法蘭尺寸
    JB/T79
    檢驗與試驗
    JB/T9092
    材 料
    碳鋼
    GB/T12229
    不銹鋼
    GB/T12230
    合金鋼
    Q/ZB66
    標 志
    GB/T12220
    供 貨
    JB/T7928


    Structural features of electric flange cut-off valve


    1, material selection, in line with domestic and foreign standards, reasonable structure, beautiful appearance.


    2. The sealing surface of disc and seat is made of iron-based alloy surfacing or Stellite cobalt-based cemented carbide surfacing. It has good wear resistance, high temperature resistance, corrosion resistance, scratch resistance and long service life.


    4. The valve stem is quenched and tempered and nitriding on surface. It has good corrosion resistance and abrasion resistance.


    5. Various pipe flange standards and flange sealing surface types can be adopted to meet various engineering requirements and user requirements.


    6. The valve body material variety is complete, the packing, the gasket may according to the actual working condition or the user request reasonable choice, can apply to each kind of pressure, the temperature and the medium working condition.


    7. The inverted seal is made of austenitic stainless steel which is connected by threads or welded on the body. The sealing is reliable. The replacement of filler can be carried out without stopping the machine. It is convenient and quick, and does not affect the operation of the system.


    8. Equipped with DZW series multi-rotary electric equipment, with small shell, light weight, full-featured, and can be used with remote computer matching, can also be selected according to user requirements.


    Main parts of electric flange valve


    閥體
    閥蓋
    閥瓣
    密封圈
    閥桿
    填料
    適用介質
    適用溫度
    (≤℃)
    WCB
    WCB+D507MO
    D577
    2Crl3
    柔性石墨
    水、油品、蒸汽
    425
    ZGlCrl8Ni9Ti
    0Crl8Ni9Ti+
    Stellite12
    Stellite6
    lCrl8Ni9Ti
    PTFE
    硝酸類
    200
    ZGlCrl8Ni2Mo2Ti
    CF8M+
    Stellite12
    lCrl8Ni2Mo2Ti
    lCrl8Ni2Mo2Ti
    PTFE
    磷酸類、
    堿類、混酸
    200
    ZG00Crl7Nil4M02
    CF3M+
    Stellite12
    Stel1ite6
    316L
    PTFE
    磷酸類、
    尿素、甲銨液
    200
    ZGlCr5MO
    ZGlCr5MO+
    Stellite12
    Stel1ite6
    25Cr2Mo1VA
    柔性石墨
    水、油品、蒸汽
    550

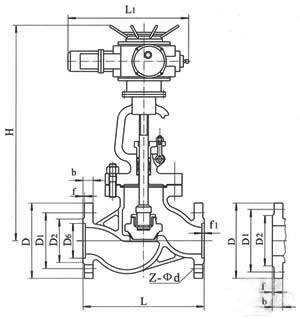

    Main dimensions of electric flange shut-off valves


    公稱壓力
    PN(MPa)
    公稱通徑
    DN(mm)
    標準值
    參考值
    L
    D
    D1
    n2
    D6
    b
    f
    f1
    Z-φd
    L1
    H
    重量
    1.6
    50
    230
    160
    125
    100
    16
    3
    4-φ18
    590
    645
    48
    65
    290
    180
    145
    120
    18
    3
    4-φ18
    590
    690
    60
    80
    310
    195
    160
    135
    20
    3
    8-φ18
    590
    715
    65
    100
    350
    215
    180
    155
    20
    3
    8-φ18
    590
    770
    71
    125
    400
    254
    210
    185
    22
    3
    8-φ18
    590
    780
    119
    150
    480
    280
    240
    210
    24
    3
    8-φ23
    590
    810
    210
    200
    600
    335
    295
    265
    26
    3
    12-φ23
    810
    967
    320
    250
    622
    405
    355
    320
    30
    3
    12-φ25
    810
    1143
    550
    300
    698
    460
    410
    375
    30
    4
    12-φ25
    830
    1292
    785
    2.5
    50
    230
    160
    125
    100
    20
    3
    4-φ18
    590
    645
    50
    65
    290
    180
    145
    120
    22
    3
    8-φ18
    590
    690
    65
    80
    310
    195
    160
    135
    22
    3
    8-φ18
    590
    715
    67
    100
    350
    230
    190
    160
    24
    3
    8-φ23
    590
    770
    73
    125
    400
    270
    220
    188
    28
    3
    8-φ25
    590
    780
    127
    150
    480
    300
    250
    218
    30
    3
    8-φ25
    810
    810
    215
    200
    600
    360
    310
    278
    34
    3
    12-φ25
    810
    967
    322
    250
    622
    425
    370
    332
    36
    3
    12-φ30
    830
    1143
    585
    300
    698
    485
    430
    390
    40
    4
    16-φ30
    830
    1292
    795
    4.0
    50
    230
    160
    125
    100
    88
    20
    3
    4
    4-φ18
    590
    645
    61
    65
    290
    180
    145
    120
    110
    22
    3
    4
    8-φ18
    590
    690
    75
    80
    310
    195
    160
    135
    121
    22
    3
    4
    8-φ18
    590
    715
    84
    100
    350
    230
    190
    160
    150
    24
    3
    4.5
    8-φ23
    590
    770
    101
    125
    400
    270
    220
    188
    176
    28
    3
    4.5
    8-φ25
    810
    782
    207
    150
    480
    300
    250
    218
    204
    30
    3
    4.5
    8-φ25
    810
    875
    226
    200
    600
    375
    320
    282
    260
    38
    3
    4.5
    12-φ30
    810
    1160
    399
    6.4
    50
    300
    175
    135
    105
    88
    26
    3
    4
    4-φ23
    590
    710
    64
    65
    340
    200
    160
    130
    110
    28
    3
    4
    8-φ23
    590
    750
    77
    80
    380
    210
    170
    140
    121
    30
    3
    4
    8-φ23
    590
    785
    86
    100
    430
    250
    200
    168
    150
    32
    3
    4.5
    8-φ25
    810
    837
    171
    125
    500
    295
    240
    202
    176
    36
    3
    4.5
    8-φ30
    810
    1031
    243
    150
    550
    340
    280
    240
    204
    38
    3
    4.5
    8-φ34
    830
    1066
    296
    200
    650
    405
    345
    300
    260
    44
    3
    4.5
    12-φ34
    830
    1213
    420
    10.0
    50
    300
    195
    145
    112
    88
    28
    3
    4
    4-φ25
    590
    714
    81
    65
    340
    220
    170
    138
    110
    32
    3
    4
    8-φ25
    590
    734
    102
    80
    380
    230
    180
    148
    121
    34
    3
    4
    8-φ30
    810
    847
    175
    100
    430
    265
    210
    172
    150
    38
    3
    4.5
    8-φ30
    810
    950
    194
    125
    500
    310
    250
    210
    176
    42
    3
    4.5
    8-φ34
    830
    1141
    285
    150
    550
    350
    290
    250
    204
    46
    3
    4.5
    12-φ34
    830
    1240
    450
    200
    650
    430
    360
    312
    260
    54
    3
    4.5
    12-φ4l
    830
    1425
    850
    16.0
    50
    300
    215
    165
    132
    88
    36
    3
    4
    8-φ25
    590
    562
    92
    65
    340
    245
    190
    152
    110
    44
    3
    4
    8-φ30
    810
    743
    165
    80
    380
    260
    205
    168
    121
    46
    3
    4
    8-φ30
    830
    820
    216
    100
    430
    300
    240
    200
    150
    48
    3
    4.5
    8-φ34
    830
    935
    238


    The best quality, first-class service Qigao creates more value for you!

    "Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

    Product Standards:

    Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

    pre-sale service:

    Product introduction, technical exchange, non-standard product design, troubleshooting。

    Sale service:

    A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

    After sales service:

    1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

    2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

    3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

    4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

    1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

    a、Structure length;

    b、Connection Type;

    c、Nominal diameter, full diameter, reduced diameter, pipe size;

    d、Operating medium and temperature, pressure range;

    e、Tests, inspection standards and other requirements

    2、The factory can configure various types of driving devices according to customer's specific requirements.。

    3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

    4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



    Order Process:

    1、Customer purchase list fax to021-33872143,Or call us 021-33872141

    2、Receive customer purchase list, provide valve model selection and quotation (price list)。

    3、Specific agreement: delivery date, special requirements, etc.。

    download Google:

    1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

    a、Structure length;

    b、Connection Type;

    c、Nominal diameter, full diameter, reduced diameter, pipe size;

    d、Operating medium and temperature, pressure range;

    e、Tests, inspection standards and other requirements

    2、The factory can configure various types of driving devices according to customer's specific requirements.。

    3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

    4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

    Sale service:

    Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

    For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

    After sales service:

    1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

    2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
    In order to further improve product quality。

    3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

    4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

    statement

    1. All text, data and pictures in this article are for reference only.J941H electric flange stop valvePlease contact us at 4000-700-665 for details of performance, size and price.
    2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
