    J41W stainless steel globe valve

    J41W stainless steel globe valve
    • sell:021-32051999
    • sell:021-32050777
    • fax:021-66099555

    Details

    • Product Introduction
    • Service Promise
    • Ordering Process

    The stem axis of the J41W stainless steel flange valve is perpendicular to the sealing surface of the valve seat. Stem opening or closing stroke is relatively short, and has a very reliable cut-off action, making this valve is very suitable for medium cut-off or adjustment and throttling use.


    Features of stainless steel globe valves


    (1) the structure is simpler than the gate valve, and it is more convenient to manufacture and maintain.


    (2) Sealing surface is not easy to wear and scratch, good sealing, no relative sliding between disc and valve body sealing surface when opening and closing, so wear and scratch are not serious, sealing performance is good, long service life.


    (3) when the valve is opened and closed, the valve stroke is small, so the height of the cut-off valve is smaller than that of the gate valve, but the length of the valve is longer than that of the gate valve.


    (4) the opening and closing moment is large, the opening and closing is more laborious, and the opening and closing time is the headmaster.


    (5) fluid resistance is large, because the medium channel of the valve body is tortuous, the fluid resistance is large, and the power consumption is large.


    (6) When the nominal pressure PN is less than 16 MPa, the medium flows downstream from the bottom of the valve disc; when the nominal pressure PN is more than 20 MPa, the medium flows downstream from the top of the valve disc to increase the seal energy. When used, the medium of the shut-off valve can only flow in one direction, and the flow direction can not be changed.


    (7) the disc is always eroded at full opening.


    Design and manufacturing standards


    1, design and manufacture according to GB12235-89


    2, the length of the structure is GB12221-89


    3, flange size according to JB/G79-94


    4. Valve check and test according to GB13927


    Performance parameters of stainless steel cut-off valve


    型號
    公稱壓力
    試驗壓力
    工作溫度(℃)
    適用介質(zhì)
    強度(水)(Mpa)
    密封(水)空氣(Mpa)
    低壓密封空氣(Mpa)
    J41W-16P(R)
    1.6
    2.4
    1.8
    0.6
    ≤200
    NITRIC ACID
    J41W-25P(R)
    2.5
    3.8
    2.8
    0.6
    ≤200
    硝酸類
    ACETIC ACID
    醋酸類
    NITRIV ACID
    硝酸類
    J41W-40P(R)
    4
    6
    4.4
    0.6
    ≤200
    ACETIC ACID
    J41W-64P(R)
    6.4
    9.6
    7
    0.6
    ≤200
    醋酸類


    Stainless steel cut-off valve main parts material


    零件名稱
    ZG1Cr18Ni9Ti系列
    ZG00Cr18Ni10系列
    ZG1Cr18Ni12Mo2Ti系列
    ZG00Cr17Ni14Mo2系列
    WCB系列
    閥體/閥蓋
    ZG1Cr18Ni9Ti
    ZG00Cr18Ni10
    ZG1Cr18Ni12Mo2Ti
    ZG00Cr17Ni14Mo2
    WCB
    閥瓣
    ZG1Cr18Ni9Ti
    ZG00Cr18Ni10
    ZG1Cr18Ni12Mo2Ti
    ZG00Cr17Ni14Mo2
    1Cr13
    閥桿
    ZG1Cr18Ni9Ti
    00Cr18Ni10
    1Cr18Ni12Mo2Ti
    00Cr17Ni14Mo2
    1Cr13
    填料
    PTFE編織
    PTFE編織
    PTFE編織
    PTFE編織
    石墨
    墊片
    304+PTFE
    304L+PTFE
    316+PTFE
    316L+PTFE
    石墨+304
    壓蓋
    ZG1Cr18Ni9Ti
    ZG00Cr18Ni10
    ZG1Cr18Ni12Mo2Ti
    ZG00Cr17Ni14Mo2
    WCB
    填料壓環(huán)
    1Cr18Ni9Ti
    00Cr18Ni10
    1Cr18Ni12Mo2Ti
    00Cr17Ni14Mo2
    1Cr13
    螺栓
    1Cr17Ni2
    1Cr17Ni2
    1Cr17Ni2
    1Cr17Ni2
    35CrMoA
    螺母
    1Cr18Ni9Ti
    1Cr18Ni9Ti
    1Cr18Ni9Ti
    1Cr18Ni9Ti
    45

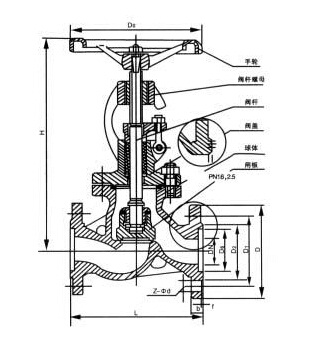

    Main dimensions of stainless steel globe valves


    J41W stainless steel globe valve -1.6MPa


    尺寸
    DN
    15
    20
    25
    32
    40
    50
    65
    80
    100
    125
    150
    200
    250
    300
    350
    400
    L
    mm
    130
    150
    160
    180
    200
    230
    290
    310
    350
    400
    480
    600
    650
    750
    850
    950
    H
    mm
    200
    243
    253
    280
    312
    321
    325
    355
    415
    460
    510
    700
    975
    1115
    1250
    1380
    W
    mm
    120
    140
    160
    160
    200
    200
    240
    240
    280
    320
    360
    560
    600
    700
    800
    900
    重量
    kg
    5
    6.5
    7
    13.5
    16
    32
    45
    60
    80
    107
    134
    268
    449
    663
    750
    1170


    J41W stainless steel globe valve -2.5MPa


    尺寸
    DN
    15
    20
    25
    32
    40
    50
    65
    80
    100
    125
    150
    200
    250
    300
    350
    400
    L
    mm
    130
    150
    160
    180
    200
    230
    290
    310
    350
    400
    480
    600
    650
    750
    850
    950
    H
    mm
    200
    243
    253
    280
    312
    321
    325
    355
    415
    460
    510
    700
    975
    1115
    1250
    1380
    W
    mm
    120
    140
    160
    160
    200
    200
    240
    240
    280
    320
    360
    560
    600
    700
    800
    900
    重量
    kg
    5
    6.5
    7
    13.5
    16
    32
    45
    60
    80
    107
    134
    268
    449
    663
    750
    1170


    J41W stainless steel globe valve -4.0MPa


    尺寸
    DN
    15
    20
    25
    32
    40
    50
    65
    80
    100
    125
    150
    200
    250
    300
    350
    400
    L
    mm
    130
    150
    160
    180
    200
    230
    290
    310
    350
    400
    480
    600
    650
    750
    850
    950
    H
    mm
    200
    243
    253
    280
    312
    321
    325
    355
    415
    460
    510
    700
    975
    1115
    1250
    1380
    W
    mm
    120
    140
    160
    160
    200
    200
    240
    240
    280
    320
    360
    560
    600
    700
    800
    900
    重量
    kg
    5
    6.5
    7
    13.5
    16
    32
    45
    60
    80
    107
    134
    268
    491
    705
    850
    1234


    The best quality, first-class service Qigao creates more value for you!

    "Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

    Product Standards:

    Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

    pre-sale service:

    Product introduction, technical exchange, non-standard product design, troubleshooting。

    Sale service:

    A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

    After sales service:

    1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

    2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

    3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

    4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

    1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

    a、Structure length;

    b、Connection Type;

    c、Nominal diameter, full diameter, reduced diameter, pipe size;

    d、Operating medium and temperature, pressure range;

    e、Tests, inspection standards and other requirements

    2、The factory can configure various types of driving devices according to customer's specific requirements.。

    3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

    4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



    Order Process:

    1、Customer purchase list fax to021-33872143,Or call us 021-33872141

    2、Receive customer purchase list, provide valve model selection and quotation (price list)。

    3、Specific agreement: delivery date, special requirements, etc.。

    download Google:

    1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

    a、Structure length;

    b、Connection Type;

    c、Nominal diameter, full diameter, reduced diameter, pipe size;

    d、Operating medium and temperature, pressure range;

    e、Tests, inspection standards and other requirements

    2、The factory can configure various types of driving devices according to customer's specific requirements.。

    3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

    4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

    Sale service:

    Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

    For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

    After sales service:

    1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

    2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
    In order to further improve product quality。

    3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

    4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

    statement

    1. All text, data and pictures in this article are for reference only.J41W stainless steel globe valvePlease contact us at 4000-700-665 for details of performance, size and price.
    2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
