    J41H / W American Standard Globe Valve is suitable for cutting off or connecting pipeline medium in various working conditions of petroleum, chemical, pharmaceutical, fertilizer and electric power industry with nominal pressure PN1.6-16MPa and working temperature-29-550 C. The driving mode is manual, gear drive, electric, pneumatic, etc.


    Structural features of American Standard globe valves


    The design and manufacture of the product conform to the American national standard ANS1B16.34, the United States BS1873 and other advanced foreign standards.


    The shape of the valve body is barrel shaped or streamlined. The shape of circulation is straight through. The fluid resistance is small.


    (3) Conical sealing is used for the sealing surface of the closing parts (gate flaps) and the valve seat, with small closing force, erosion resistance and reliable sealing.


    The valve seat can be replaceable, and can be combined with sealing surface materials at will to meet the requirements of working conditions and extend the service life.


    _Large caliber and high pressure globe valves adopt lifting rod according to the need of closing force, and are equipped with rolling bearing type with impact handwheel to reduce closing force.


    _The main materials, interior materials, fillers and fasteners can be reasonably combined according to user requirements or actual working conditions.


    Design standard for American Standard globe valves


    設計與制造
    結構長度
    法蘭尺寸
    對焊連接尺寸
    壓力-溫度
    試驗-檢驗
    ANSI B16.34 BS1873
    ANSI B16.10
    ANSI B16.5
    ANSI B16.25
    ANSI B16.34
    API 598


    American Standard globe valve pressure test


    公稱壓力PN(Lb)
    強度試驗
    氣密封試驗
    氣密封試驗
    MPa
    Lbf/in2
    MPa
    Lbf/in2
    MPa
    Lbf/in2
    150
    3.0
    430
    2.2
    315
    0.4-0.7
    60-100
    300
    7.7
    1110
    5.7
    815
    600
    15.3
    2220
    11.3
    1630
    900
    23.0
    3330
    17.0
    2445
    1500
    38.4
    5560
    28.2
    4080
    2500
    64.0
    9255
    47.0
    6790


    Main parts material of American Standard globe valve


    體、蓋
    閥桿
    密封面
    墊片(環)
    填料
    工作溫度
    適用介質
    WCB
    2Cr13
    13Cr
    STL
    木體材料
    尼龍
    增強柔性石墨
    13Cr/柔性石墨
    1Cr13/Flexible
    SFB-2
    08軟鋼
    F304
    F316
    F304L
    F316L
    柔性石墨
    增強柔性石墨
    SFB/260
    SFP/260
    PTFE
    ≤425

    蒸汽
    油品
    WC1
    38CrMoAl 25Cr2MoV
    ≤425
    WC6
    ≤540
    WC9
    ≤570
    C5 C12
    ≤540
    CF8
    F304
    ≤200
    硝酸
    醋酸
    尿素
    CF8M
    F316
    CF3
    F304L
    CF3M
    F316L

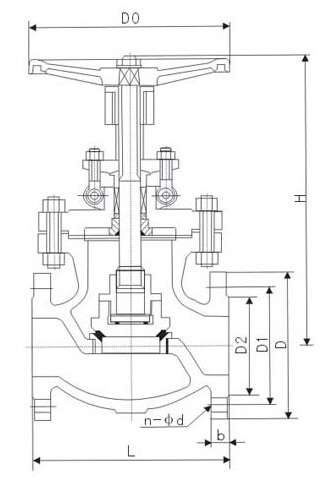

    Main dimensions of globe valves


    DN
    150Lb 凸面法蘭(RF) 主要尺寸
    重量
    mm
    in
    L
    D
    D1
    D2
    b
    n-φd
    H
    D0
    15
    1/2
    108
    89
    60.5
    35
    11.2
    4-16
    241
    100
    6.9
    20
    3/4
    117
    98
    69.9
    43
    12.7
    4-16
    241
    100
    9.8
    25
    1
    127
    108
    79.2
    51
    14.2
    4-16
    242
    125
    13.5
    32
    11/4
    140
    117
    89
    63
    16
    4-16
    280
    160
    19.5
    40
    11/2
    165
    127
    98.6
    73
    17.5
    4-16
    286
    160
    28.5
    50
    2
    203
    152
    120.7
    92
    19
    4-19
    368
    200
    18
    65
    21/2
    216
    178
    139.7
    105
    22.4
    4-19
    387
    200
    30
    80
    3
    241
    190
    152.4
    127
    24
    4-19
    411
    250
    41
    100
    4
    292
    229
    190.5
    157
    24
    4-19
    454
    250
    64
    125
    5
    356
    254
    216.0
    186
    24
    8-22.5
    455
    350
    86
    150
    6
    406
    279
    241.3
    216
    25.4
    8-22.5
    541
    350
    113
    200
    8
    495
    343
    298.5
    270
    28.4
    8-22.5
    651
    450
    178
    250
    10
    622
    406
    362.0
    324
    30.2
    12-25.4
    800
    450
    270
    300
    12
    698
    483
    431.8
    381
    32
    12-25.4
    1231
    600
    350
    350
    14
    787
    533
    476.3
    413
    35
    12-29
    1450
    600
    460
    400
    16
    914
    597
    539.8
    470
    36.6
    26-29
    1645
    600
    590



    DN
    300Lb 凸面法蘭(RF) 主要尺寸
    重量
    15
    1/2
    152
    95
    66.5
    35
    14.2
    4-16
    241
    140
    7.7
    20
    3/4
    178
    117
    82.5
    43
    16
    4-19
    241
    140
    11.3
    25
    1
    203
    123
    89
    51
    17.5
    4-19
    283
    160
    16.8
    32
    11/4
    216
    133
    98.5
    63
    19
    4-19
    320
    200
    21.2
    40
    11/2
    229
    155
    114.3
    73
    20.6
    4-22.5
    322
    200
    32.6
    50
    2
    267
    165
    127
    92
    22.4
    8-19
    399
    200
    25
    65
    21/2
    292
    190
    149.4
    105
    25.4
    8-22.5
    438
    250
    30
    80
    3
    318
    210
    168.1
    127
    28.4
    8-22.5
    464
    280
    35
    100
    4
    356
    254
    200.2
    157
    31.8
    8-22.5
    565
    350
    56
    125
    5
    400
    279
    235
    186
    35
    8-22.5
    614
    350
    96
    150
    6
    444
    318
    269.7
    216
    36.6
    12-25.4
    717
    400
    120
    200
    8
    559
    381
    330.2
    270
    41.2
    12-25.4
    930
    500
    212
    250
    10
    622
    444
    387.4
    324
    47.8
    16-28.5
    1012
    550
    330
    300
    12
    711
    521
    450.8
    381
    50.8
    16-32
    1231
    600
    472
    350
    14
    762
    584
    514.4
    413
    54
    20-32
    1450
    600
    715
    400
    16
    864
    648
    571.5
    470
    57.2
    20-35
    1645
    600
    920



    DN
    600Lb 凸面法蘭(RF)主要尺寸
    重量
    mm
    in
    L
    D
    D1
    D2
    b
    n-φd
    H
    D0
    15
    1/2
    165
    95
    66.5
    35
    14.5
    4-16
    285
    100
    7.8
    20
    3/4
    190
    117
    82.5
    43
    16
    4-19
    285
    125
    12.5
    25
    1
    216
    124
    89
    51
    17.5
    4-19
    313
    160
    17.5
    32
    11/4
    229
    133
    98.5
    63
    21
    4-19
    328
    160
    23.5
    40
    11/2
    241
    156
    114.3
    73
    22.5
    4-22.5
    365
    180
    38.5
    50
    2
    292
    165
    127
    92
    33
    8-19
    444
    200
    35
    65
    21/2
    330
    190
    149.4
    105
    36
    8-22.5
    483
    250
    50
    80
    3
    356
    210
    168.1
    127
    39
    8-22.5
    533
    250
    60
    100
    4
    432
    273
    216
    157
    45
    8-25.4
    622
    350
    110
    125
    5
    508
    330
    266.7
    186
    52
    8-28.5
    750
    350
    200
    150
    6
    559
    356
    292.1
    216
    55
    12-28.5
    800
    450
    230
    200
    8
    660
    419
    349.3
    270
    63
    12-32
    927
    500
    410
    250
    10
    787
    508
    431.8
    324
    71
    16-35
    1257
    600
    625
    300
    12
    838
    559
    489
    381
    74
    20-35
    1468
    680
    860


    The best quality, first-class service Qigao creates more value for you!

    "Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

    Product Standards:

    Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

    pre-sale service:

    Product introduction, technical exchange, non-standard product design, troubleshooting。

    Sale service:

    A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

    After sales service:

    1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

    2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

    3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

    4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

    1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

    a、Structure length;

    b、Connection Type;

    c、Nominal diameter, full diameter, reduced diameter, pipe size;

    d、Operating medium and temperature, pressure range;

    e、Tests, inspection standards and other requirements

    2、The factory can configure various types of driving devices according to customer's specific requirements.。

    3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

    4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



    Order Process:

    1、Customer purchase list fax to021-33872143,Or call us 021-33872141

    2、Receive customer purchase list, provide valve model selection and quotation (price list)。

    3、Specific agreement: delivery date, special requirements, etc.。

    download Google:

    1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

    a、Structure length;

    b、Connection Type;

    c、Nominal diameter, full diameter, reduced diameter, pipe size;

    d、Operating medium and temperature, pressure range;

    e、Tests, inspection standards and other requirements

    2、The factory can configure various types of driving devices according to customer's specific requirements.。

    3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

    4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

    Sale service:

    Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

    For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

    After sales service:

    1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

    2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
    In order to further improve product quality。

    3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

    4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

    statement

    1. All text, data and pictures in this article are for reference only.J41H/W American Standard stop valvePlease contact us at 4000-700-665 for details of performance, size and price.
    2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
