J41F46 fluorine stop valve

Quality stability: the implementation of the whole process of quality control, meticulous, all aspects of detection!
Reasonable price: effective internal cost control, reduce expenses, let the benefit of customers!
Fast delivery: advanced production line, sufficient stock, shorten the delivery time!

sell：021-32051999
sell：021-32050777
fax：021-66099555

Details

Product Introduction
Service Promise
Ordering Process

Types J41F4-16 and J41F46-16 fluorine-lined globe valves are suitable for Aqua regia, fluoric acid, hydrofluoric acid, hydrofluoric acid and various organic acids, strong acids and strong oxidants at - 50 ~ 150 C. They are also suitable for use in various concentrations of strong alkali organic solvents and other corrosive gases, liquid media pipelines.

Standard of execution

Design specification: GB/T 12233 GB/T 12235

Structure length: GB/T 12221

Connection flange: JB/T 78 JB/T 79

Test and inspection: GB/T 13927

Product identification: GB/T 12220

Supply specification: JB/T 7928

Specification for performance of fluorine stop valves

襯里、閥座	適用溫度（℃）	適用介質(zhì)
PTFE（F4）	≤180	除熔融堿金屬、元素氟外的各種濃度的酸、堿、鹽、王水、有機酸等強腐蝕性介質(zhì)
PCTFE（F3）	≤120
FEP（F46）	≤150
PFA（可熔性F4）	≤180
PVDF（F2）	≤100
RPTFE（RF4）	≤180

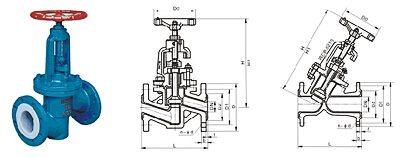

Main dimensions of fluorine stop valves

規(guī)格		L	D	D1	D2	f	b	n-d	D0	H	H1
DN	NPS	1.0MPa
15	90	95	65	45	2	14	4-14	100	240	265
20	95	105	75	55	2	16	4-14	100	245	270
25	1	100	115	85	65	2	16	4-14	120	250	275
32	1	105	135	100	78	2	18	4-18	120	260	290
40	1	115	145	110	85	3	18	4-18	140	290	325
50	2	125	160	125	100	3	20	4-18	140	300	335
65	2	145	180	145	120	3	20	4-18	160	355	400
80	3	155	195	160	135	3	22	4-18	160	400	450
100	4	175	215	180	155	3	22	8-18	180	455	495
125	5	200	245	210	185	3	24	8-18	180	530	560
150	6	225	280	240	210	3	24	8-23	240	605	650
200	8	275	335	295	265	3	26	8-23	240	650	770
250	10	325	390	350	320	3	28	12-23	280	680	800
300	12	375	440	400	368	4	28	12-23	280	710	835
1.6MPa
15	90	95	65	45	2	14	4-14	100	240	265
20	95	105	75	55	2	16	4-14	100	245	270
25	1	100	115	85	65	2	16	4-14	120	250	275
32	1	105	135	100	78	2	18	4-18	140	260	290
40	1	115	145	110	85	3	18	4-18	140	290	325
50	2	125	160	125	100	3	20	4-18	160	300	335
65	2	145	180	145	120	3	20	4-18	180	355	400
80	3	155	195	160	135	3	22	8-18	240	400	450
100	4	175	215	180	155	3	24	8-18	240	455	495
125	5	200	245	210	185	3	26	8-18	280	530	560
150	6	225	280	240	210	3	28	8-23	320	605	650
200	8	275	335	295	265	3	30	8-23	360	650	770
2.5MPa
15	90	95	65	45	2	16	4-14	120	245	270
20	95	105	75	55	2	16	4-14	120	250	275
25	1	100	115	85	65	2	16	4-14	140	260	290
32	1	105	135	100	78	2	18	4-18	140	290	325
40	1	115	145	110	85	3	18	4-18	160	300	335
50	2	125	160	125	100	3	20	4-18	180	355	400
