    J61H/Y welding stop valve

    J61H/Y welding stop valve
    • sell:021-32051999
    • sell:021-32050777
    • fax:021-66099555

    Details

    • Product Introduction
    • Service Promise
    • Ordering Process

    Welded globe valves are suitable for cutting off or switching on the pipelines of petroleum, chemical, hydraulic and thermal power plants with nominal pressure of PN10.0-32.0 Mpa and P (54) 100V-P (57) 170V and working temperature of<540 ((P (57) 170V) 570 (?) Suitable medium is water, oil, steam, etc. The ways of operation are manual, gear drive, electric and so on.




    Structural features of welded globe valves


    1. Product design and manufacture according to E101 and JB/T3595-93 standards, reasonable structure, good performance, beautiful shape.


    2. the valve cavity adopts a pressure self tightening seal structure, and the sealing performance is better. The two ends of the branch pipe are welded structures. Welding groove can be matched according to standard or user requirements.


    3. The sealing surface of disc and seat is made of Stellite cobalt-based cemented carbide surfacing, which is wear-resistant, high temperature-resistant, good abrasion resistance and long service life.


    The 4. stem is quenched and tempered with surface nitriding. It has good corrosion resistance and abrasion resistance.


    5. the depth of the gland cover is reasonable, the filler is corrosion inhibitor, and the sealing is reliable.


    7. Electric globe valve is equipped with DZW series valve electric device, with small shell, light weight, full function, beautiful appearance and other characteristics, and can be used with the program-controlled computer, can also be selected according to user requirements electric device.




    Standard Specification for welded globe valves


    Design and manufacture: E101, JB/T3595-93


    Pressure temperature: E101, JB/T3595


    Structure length: E101


    Butt welding joint size: GB/T15198.3-95


    Inspection and experiment: GB/T13927-92




    Main performance parameters of welded globe valves


    產品型號
    公稱壓力
    試驗壓力
    工作壓力
    工作溫度(℃)
    適用介質
    殼體強度
    密封
    P54
    P55
    P57
    J61H/Y-100
    10
    15
    11
    ≤450
    水、蒸汽、油品
    J61H/Y-200
    20
    30
    22
    J61H/Y-250
    25
    38
    28
    J61H/Y-320
    32
    48
    36
    J61Y-P54/100V
    30
    22
    10
    ≤540
    蒸 汽
    J61Y-P54/140V
    38
    28
    14
    J61Y-P54/170V
    48
    36
    17
    10
    J61Y-P55/100V
    38
    28
    14
    ≤555
    J61Y-P55/140V
    48
    36
    17
    J61Y-P55/170V
    53
    39
    10
    J61Y-P57/100V
    48
    36
    14
    ≤570
    J61Y-P57/140V
    55
    40
    17
    J61Y-P57/170V
    60
    44


    Welding stop valve main parts material


    零件名稱
    閥體
    閥蓋
    閥桿
    閥瓣
    密封面
    填料
    閥桿螺母
    手輪
    緊固體
    J61H型
    25
    WCB
    25
    40Cr
    鉻不銹鋼
    鉻鉬鋁鋼化
    鉻不銹鋼
    鉻不銹鋼
    柔性石墨
    鋁青銅
    可鍛鑄鐵
    優良碳鋼鉬鋼
    J61Y型
    25
    WCB
    25
    40Cr
    鉻不銹鋼
    鉻鉬鋁鋼化
    25
    硬質合金
    柔性石墨
    鋁青銅
    可鍛鑄鐵
    優良碳鋼鉻鉬鋼
    J61Y-P54型
    ZG20CrMolV 12CrlMolV
    12C r1MolV
    20CrMol V
    25CrlMolV
    12CrlMolV
    硬質合金
    柔性石墨
    鋁青銅
    可鍛鑄鐵
    鉻鉬鋼
    J61Y-P55型
    ZG25CrMol V12CrlMolV
    12C r1MolV
    20CrMol V
    25CrlMolV
    12C r1MolV
    硬質合金
    柔性石墨
    鋁青銅
    可鍛鑄鐵
    鉻鉬鋼
    J61Y-P57型
    ZGl5CrMolV 12CrlMolV
    12CrlMolV
    20CrMol V25CrlMolV
    12CrlMolV
    硬質合金
    柔性石墨
    鋁青銅
    可鍛鑄鐵
    鉻鉬鋼

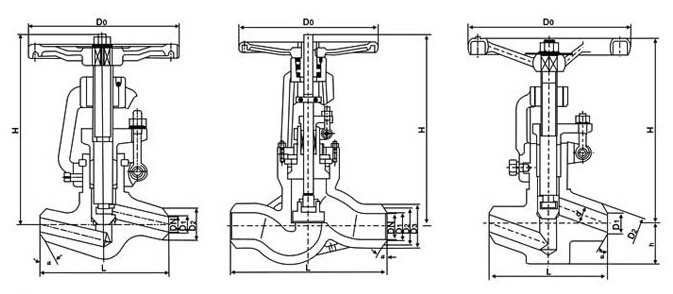

    Main dimensions of welded globe valves


    公稱通徑DN
    主要外形尺寸和連接尺寸
    重量
    L
    D1
    D2
    D3
    α
    H
    D0
    J61(H.Y)-25、40、64、100、200、250、320 J61Y-P54/100V、P54/140V、P54/170V
    10
    120
    12
    25
    40°
    185
    140
    2.8

    15
    170
    17
    36
    40°
    247
    200
    7.5

    20
    170
    22
    42
    40°
    248
    200
    9

    25
    170
    26
    42
    40°
    248
    240
    9.5

    32
    170
    31
    44
    40°
    248.5
    280
    15

    50
    250
    50
    82
    32°
    450
    320
    60

    50
    350
    50
    82
    32°
    450
    320
    64

    65
    430
    69
    100
    110
    32°
    669
    400
    74
    80
    470
    84
    108
    130
    32°
    669
    450
    112.5
    100
    560
    107
    144
    165
    32°
    755
    500
    178.5
    注:DN50為兩種型號。
    J61Y-P55/100V、P55/140V、P55/170V J61Y-P57/100V、P57/140V、P57/170V
    10
    120
    12
    28
    40°
    189
    140
    3

    15
    170
    17
    40
    40°
    250
    200
    9

    20
    170
    22
    46
    40°
    252
    200
    11

    25
    170
    26
    46
    40°
    254
    240
    13

    32
    170
    31
    49
    40°
    254
    280
    17

    50
    250
    50
    90
    32°
    453
    320
    68

    50
    350
    50
    90
    32°
    455
    320
    72

    65
    430
    69
    104
    115
    32°
    630
    400
    83
    80
    470
    84
    110
    140
    32°
    672
    450
    118
    100
    560
    17
    148
    170
    32°
    761
    500
    165
