GUQ pneumatic vacuum (pressure) ball valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
GUQ series pneumatic vacuum (pressure) ball valve is suitable for connecting or cutting off the medium flow in the pipeline in the vacuum system. The valve is powered by compressed air, and changes the direction of the gas path by controlling the pneumatic components, pushes the mechanical transmission of the piston rack and gear, and drives the ball valve to open and close with the output torque of the angular stroke. The valve is straight-through, sealed by a spherical surface, so that it can be used in a vacuum state, but also in a low-pressure state, and can be installed in any position. Cylinder is divided into double and single action (spring reset), optional feedback signal device and electrical valve positioner.
Type GUQ series pneumatic vacuum (pressure) ball valves are suitable for working with acid or alkaline gases or liquids.
Main technical performance
適用范圍(Pa) | 快卸法蘭（KF）2x105 ～1.3x10-5 活套法蘭16x105～1.3x10-5 |
閥門漏率(Pa.L/S) | ≤1.3x10-5 |
介質溫度（℃） | 標準出廠：-30～+150 特殊指定：-30～+240 |
氣源壓力（MPa） | 0.4～0.8 |
法蘭標準 | GB4982；GB/T6070 |
安裝位置 | 任意 |
電源電壓 | 標準出廠：AC220V/50Hz 特殊指定：AC110V；DC24V；DC12V等 |
信號反饋 | 標準出廠：閥位指示器 特殊指定：微動開關；智能型4～20mA DC |
氣缸可選 | 標準出廠：雙作用式 特殊指定：?jiǎn)巫饔檬剑ㄓ袕椈煞祷兀┛蛇x常開或常閉 |

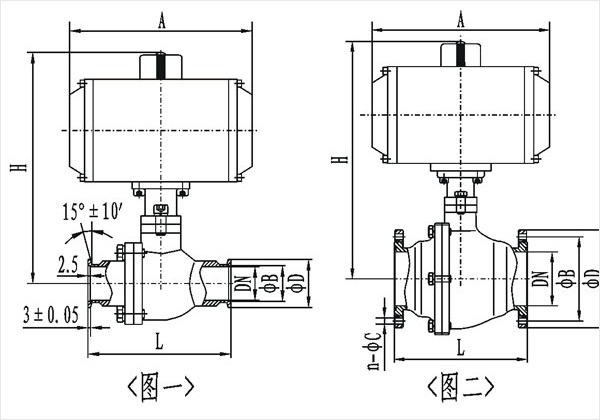

真空球閥結構圖.jpg)
型號 | 通徑(DN) | ΦD | ΦB | H | L | A |
GUQ-10/KF | 10 | 30 | 40 | 168 | 92 | 140 |
GUQ-16/KF | 16 | 30 | 17.2 | 154 | 100 | 140 |
GUQ-25/KF | 25 | 40 | 26.2 | 175 | 114 | 164 |
GUQ-40/KF | 40 | 55 | 41.2 | 247 | 165 | 210 |
GUQ-50/KF | 50 | 75 | 52.2 | 282 | 175 | 247 |
型號 | 通徑(DN) | ΦD | ΦB | H | L | A | n-ΦC |
GUQ-10 | 10 | 50 | 40 | 160 | 99 | 146 | 4-6.5 |
GUQ-16 | 16 | 60 | 45 | 162 | 100 | 146 | |
GUQ-20 | 20 | 65 | 50 | 191 | 114 | 168 | |
GUQ-25 | 25 | 70 | 55 | 191 | 114 | 168 | |
GUQ-32 | 32 | 90 | 70 | 230 | 140 | 204 | 4-9 |
GUQ-40 | 40 | 100 | 80 | 267 | 165 | 260 | |
GUQ-50 | 50 | 110 | 90 | 289 | 175 | 268 | |
GUQ-63 | 63 | 130 | 110 | 313 | 186 | ||
GUQ-80 | 80 | 145 | 125 | 346 | 198 | 268 | 8-9 |
GUQ-100 | 100 | 165 | 145 | 375 | 220 | 298 | |
GUQ-125 | 125 | 200 | 175 | 444 | 266 | 458 | 8-11 |
GUQ-150 | 150 | 225 | 200 | 497 | 296 | 525 | |
GUQ-200 | 200 | 285 | 260 | 620 | 390 | 602 | 12-12 |
