GIQ-B pneumatic high vacuum butterfly valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
GIQ-B series pneumatic high vacuum butterfly valve pneumatic actuator is driven by compressed air, through the electromagnetic directional valve to change the direction of the gas path, promote the mechanical movement of the piston rack, gear, angular stroke output torque to drive the butterfly valve, open and close motion. In order to turn on or cut off the air flow in the vacuum pipeline, it is a new type of pneumatic butterfly valve controlled by pneumatic actuator, which is divided into double-acting and single-acting (spring reset) cylinders. It can be equipped with feedback signal device and electric valve positioner.
Type GIQ-B series pneumatic high vacuum butterfly valves are suitable for working air and non corrosive gases.
Main technical performance
適用范圍(Pa) | 105～1.3x10-5 |
閥門漏率(Pa.L/S) | ≤1.3x10-6 |
介質溫度（℃） | -25～+80(密封材料為丁腈橡膠) -30～+150(密封材料為氟橡膠) |
氣源壓力（MPa） | 0.4～0.6 |
法蘭標準 | JB919 |
安裝位置 | 任意 |
控制電路 | 標準出廠：AC220V/50Hz開關型 特殊指定：AC110V；DC24V；DC12V等 |
信號反饋 | 標準出廠：帶無源觸點型 特殊指定：4～20mA DC調節型 |
氣缸可選 | 標準出廠：雙作用式 特殊指定：單作用式（有彈簧返回） 可選常開或常閉 |
構圖.jpg)

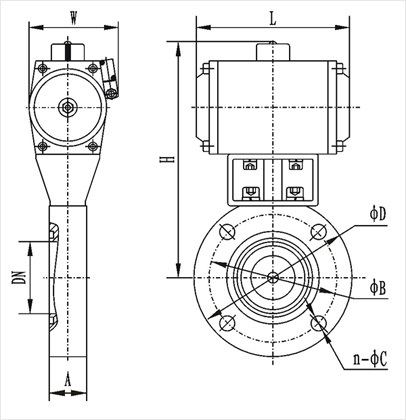

型號 | 通徑(DN) | ΦD | ΦB | H | A | L | W | n-ΦC |
GIQ-50B | 50 | 110 | 90 | 205 | 22 | 164 | 105 | 4-Φ9 |
GIQ-63B | 63 | 130 | 110 | 218 | 26 | |||
GIQ-80B | 80 | 145 | 125 | 248 | 30 | 190 | 124 | |
GIQ-100B | 100 | 170 | 145 | 260 | 4-Φ12 | |||
GIQ-125B | 125 | 195 | 175 | 273 | 35 | |||
GIQ-150B | 150 | 220 | 195 | 332 | 247 | 140 | 8-Φ12 | |
GIQ-200B | 200 | 275 | 250 | 386 | 40 | 302 | 165 | |
GIQ-250B | 250 | 330 | 300 | 466 | 45 | 372 | 198 | |
GIQ-300B | 300 | 380 | 350 | 535 | 55 | 432 | 225 | 8-Φ14 |
GIQ-400B | 400 | 465 | 465 | 631 | 60 | 518 | 243 | 8-Φ18 |
