GIQ-A pneumatic high vacuum butterfly valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
GIQ-A Pneumatic High Vacuum Butterfly Valve GIQ-A Series Pneumatic High Vacuum Butterfly Valve is suitable for use in high vacuum systems to turn on or cut off air flow. The valve is powered by compressed air, through the electromagnetic directional valve to change the direction of the air passage, the implementation of cylinder propulsion, so that fixed on the rotating shaft valve plate rotation 90 degrees to achieve valve opening and closing.
Type GIQ-A series pneumatic high vacuum butterfly valves are suitable for working air and non corrosive gases.
Main technical performance
適用范圍(Pa) | 2x105～1.3x10-5 |
閥門漏率(Pa.L/S) | ≤1.3x10-6 |
介質溫度（℃） | -25～+80(密封材料為丁腈橡膠) -30～+150(密封材料為氟橡膠) |
氣源壓力(MPa) | 0.4～0.6 |
法蘭標準 | GB/T6070 |
安裝位置 | 任意 |
電源電壓 | 標準出廠：AC220V/50Hz 特殊指定：AC110V；DC24V；DC12V等 |
信號反饋 | 標準出廠：不帶反饋信號 特殊指定：磁性開關DV/AC5～240V |

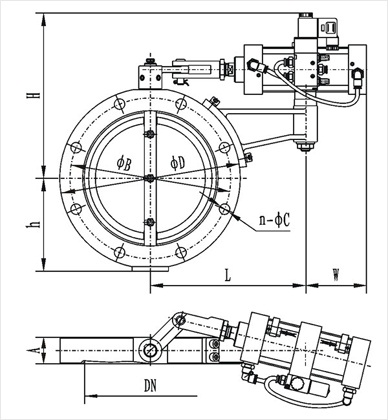

高真空蝶閥結構圖.jpg)
型號 | 通徑(DN) | ΦD | ΦB | H | h | A | L | W | n-ΦC |
GIQ-50A | 50 | 110 | 90 | 162 | 55 | 26 | 160 | 62 | 4-Φ9 |
GIQ-63A | 63 | 130 | 110 | 172 | 66 | 32 | 180 | 81 | |
GIQ-80A | 80 | 145 | 125 | 178 | 74 | 8-Φ9 | |||
GIQ-100A | 100 | 165 | 145 | 187 | 84 | 8-Φ12 | |||
GIQ-125A | 125 | 200 | 175 | 208 | 102 | 35 | 207 | 86 | |
GIQ-150A | 150 | 225 | 200 | 220 | 114 | ||||
GIQ-200A | 200 | 285 | 260 | 256 | 146 | 45 | 236 | 100 | 12-Φ11 |
GIQ-250A | 250 | 335 | 310 | 282 | 173 | 50 | |||
GIQ-300A | 300 | 425 | 395 | 350 | 216 | 55 | 280 | 118 | 12-Φ14 |
GIQ-400A | 400 | 510 | 480 | 392 | 259 | 60 | 304 | 130 | 16-Φ14 |
GIQ-500A | 500 | 600 | 565 | 440 | 312 | 80 | 350 | 175 | 12-Φ18 |
GIQ-600A | 600 | 710 | 670 | 525 | 366 | 100 | 360 | 212 | 12-Φ21 |
GIQ-800A | 800 | 920 | 880 | 690 | 473 | 130 | 520 | 268 | 20-Φ21 |
